MODIFYING THE PARAMETER VALUES
The value or status of a selected parameter can
be changed with the Dial. For On/Off situations,
the corresponding Function button toggles be-
tween the two states. In many situations, the Slid-
ers F1…F8 can be used to change parameter
values without having to select the parameter
beforehand. In Edit situations, the bottom LED
indicator of the Sliders F1…F8 turns on to shows
that the Sliders are enabled as Data Entry devic-
es.

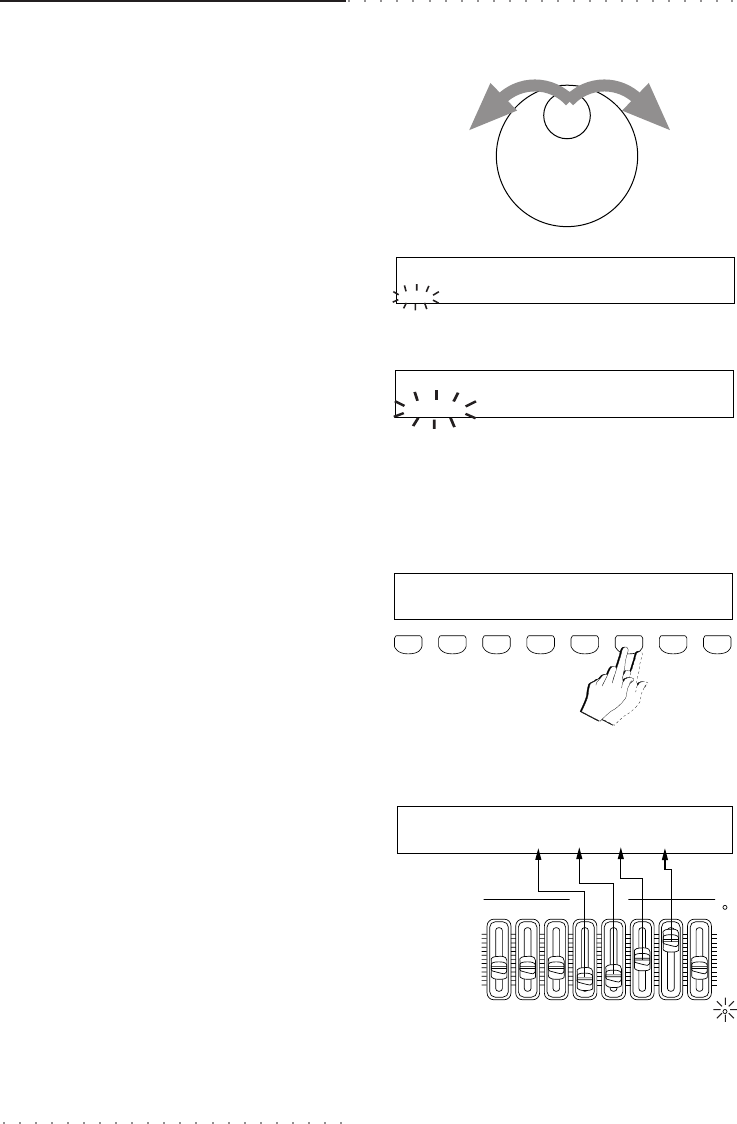

Modifying parameters with the DIAL
Change the values of the selected parameter by
rotating the DIAL. In normal playing conditions,
the DIAL is active for real time Tempo changes,
while in Edit situations, it enters data continually:
clockwise rotation increases while counter-clock-
wise rotation decreases.
Modifying On/Off parameters with the Function
button
If the parameter is an On/Off function, toggle
between the two states with the corresponding
Function button after selecting the parameter.
For example, the Local Off parameter setting of
the tracks in the page shown opposite can be
toggled between ON and OFF by pressing the
corresponding Function button repeatedly.
Modifying parameters with the Sliders
In most Edit situations, the Sliders F1…F8 acti-
vate as data entry devices for the parameters that
correspond to the function buttons F1…F8.
In such cases, the Sliders intervene directly on
the corresponding parameter without having to
select the parameter beforehand.
Data Entry
1/2 MIDI CHANNEL: [CHANNEL] [Tk08]
10 02 03 04 05 06 07 08
MIDI: MIDI Channel page. Assign a different MIDI channel to
the selected track using the DIAL.
Edit General Pedal page: Pedal 1 functions selected with the
Dial
4/5 GENERAL: [PEDAL 1]
P1=Soft P2=Sosten P3=Damper
MAX
MIN
DRUMS
ACCOMPANIMENT
BASS ACCOMP.1 ACCOMP.2 ACCOMP. 3 LOWER UPPER 2 UPPER 1
F1 F2 F3 F4 F5 F6 F7 F8
2/2 MIXER:PAN [Tk08]
C=00 C=00 C=00 Mute L=24 C=00 R=31 C=00
1/1 MIDI:SECTION LOCAL (On/Off) [Tk08]
On On On On On On On On
F1 F2 F3 F4 F5 F6 F7 F8
MIDI: Section Local Off page
showing On/Off parameters
Off
ON
MIXER: Pan page. Use the sliders to change the pan settings
without selecting the corresponding parameter
