3. NOMENCLATURE
English
English
[ ]
[
ROTARY
]
[
RELEASE
]
[
CD SLOT
]
[
Z
]
[
A-M
]
[
SRC
]
[
D
]
[
RPT
]
[
DIRECT
]
[
RDM
]
[
SCN
]
[
ISR
]
[
M-B
]
[
BND
]
[ ]
[ ]
[
]
Z-Enhancer indication
Source unit / /
Display Items / /
MAGNA BASS EXTEND indication
Operation status indication (Frequency, clock)
Preset channel indication (1 to 6)
Random indication
Repeat indication
Scan indication
Stereo indication
Manual indication

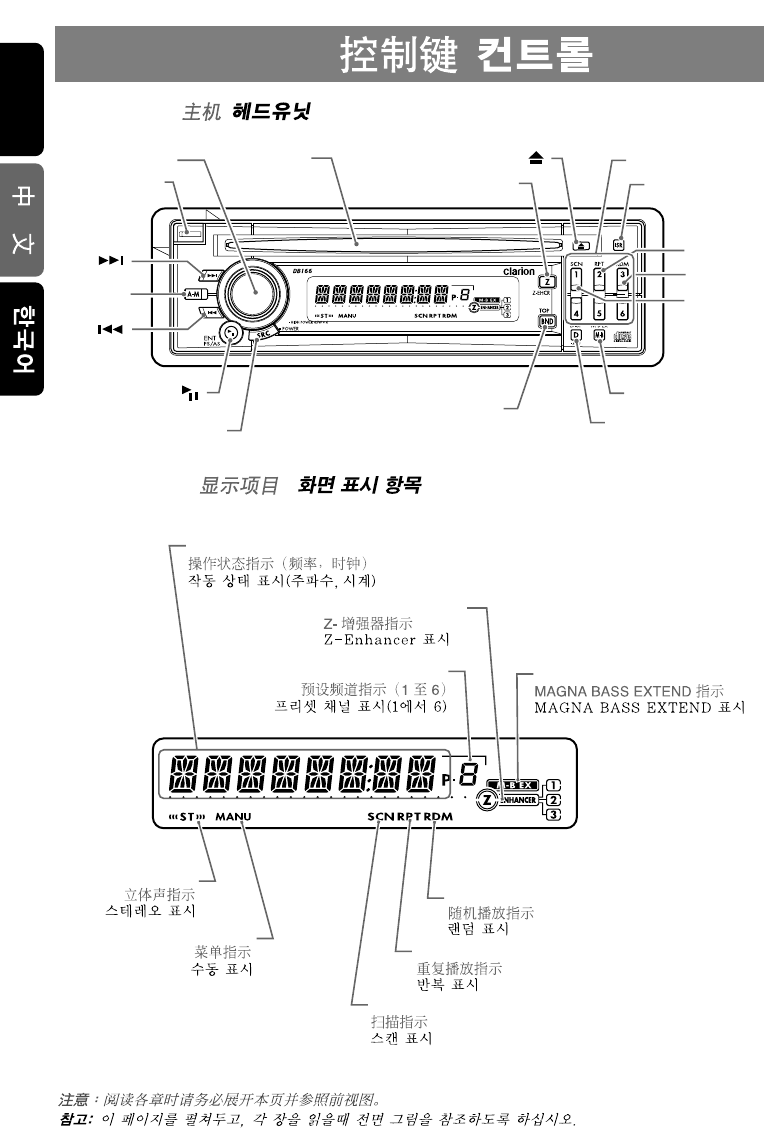

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3 (unfold).
Names of the Buttons and their Functions
[RELEASE] button
• Press the [RELEASE] button to unlock the
DCP.
[ROTARY] knob
• Adjust the volume by turning the knob
clockwise or counterclockwise.
• Use the knob to perform various settings.
[CD SLOT]
• CD insertion slot.
[Z] button
• Use the button to select one of the 3 types of
sound characteristics already stored in
memory.
[Q] button
• Eject a CD when it is loaded into the unit.
[DIRECT] buttons
• Store a station into memory or recall it
directly while in the radio mode.
[ISR] button
• Recall ISR radio station in memory.
• Press and hold for 2 seconds or longer: Store
current station into ISR memory (radio mode
only).
[RPT] button
• Repeat play while in the CD mode.
[RDM] button
• Perform random play while in the CD mode.
[SCN] button
• Perform scan play for 10 seconds of each
track while in the CD mode.
[M-B] button
• Press the button to switch the MAGNA BASS
EXTEND on/off.
[D] button
• Switch the display indication (Main display,
Clock display).
• Press and hold the button for 1 second or
longer to enter the adjust mode.
[BND] button
• Switch the band, or seek tuning or manual
tuning while in the radio mode.
• Play a first track while in the CD mode.
[SRC] button
• Press the button to turn on the power.
Press and hold the button for 1 second or
longer to turn off the power.
• Switches the operation mode between the
radio and CD mode.
[ ] button
• Play or pause a CD while in the CD mode.
• Perform preset scan while in the radio mode.
When the button is pressed and held for 2
seconds or longer, auto store is performed.
[A-M] button
• Use the button to switch to the audio mode
(bass, treble, balance, fader).
[å], [∂] buttons
• Select a station while in the radio mode or
select a track when listening to a CD. These
buttons are used to make various settings.
• Press and hold the button for 1 second or
longer to switch the fast-forward/fast-
backward while in the CD mode.
