Clarion WH 100 Headphones User Manual

Owner’s Manual
Model: WH100
Congratulations on your purchase of a sophisticated, high-
tech Clarion Automotive Infrared Stereo Headphone System.
This system frees you from the tangle of Headphone wires
and lets you enjoy music or TV without the tangle of cables
around you. To ensure the best performance of your system,
please read this manual carefully.
n Automatic Level Control prevents input signal over
n Uses high frequency infrared light to assure a clean sig-
nal for clear reception.
n Adjustable Headphone band.

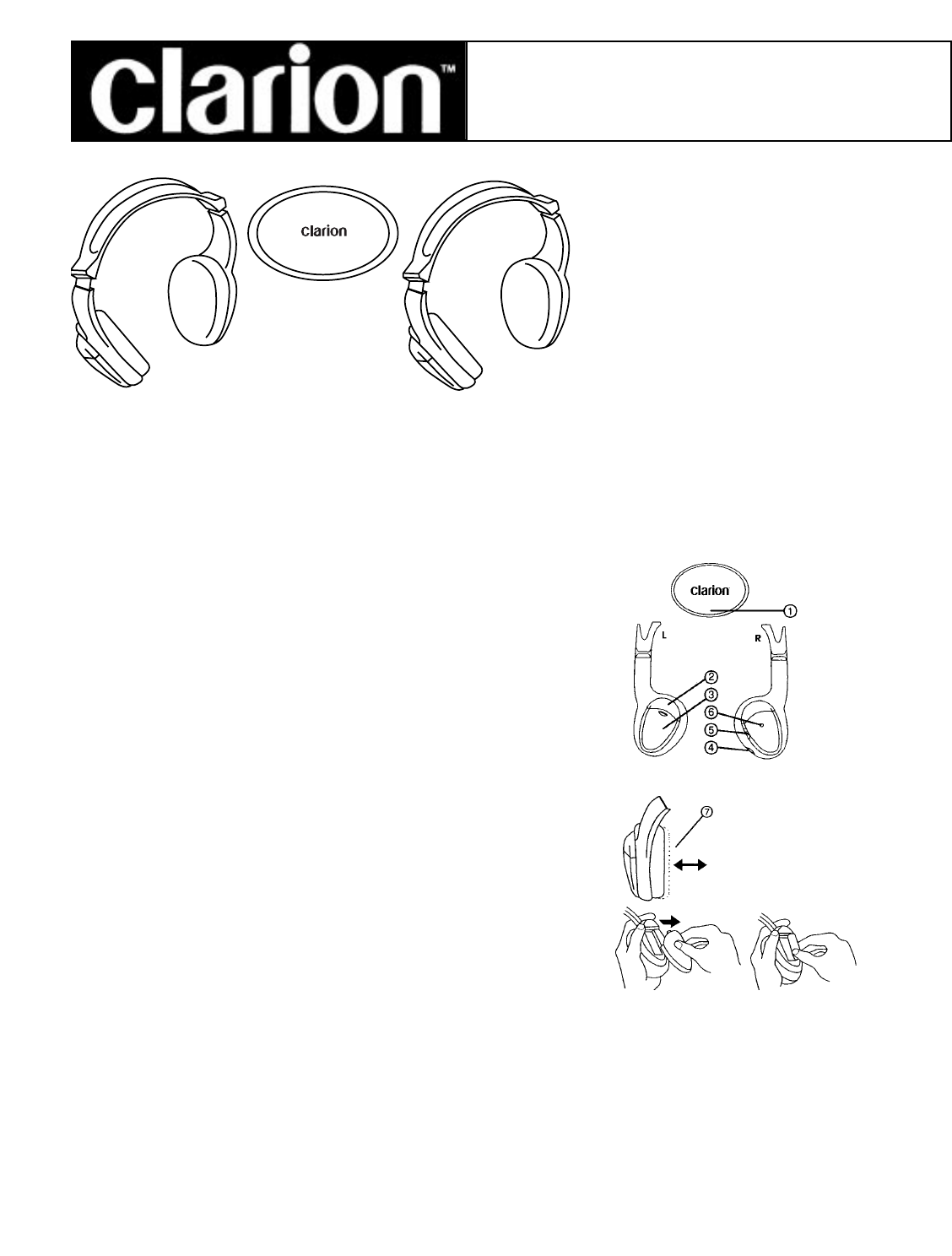

Infrared Transmitter:
1. Infrared Emitting Leds - Transmit signal to headphones
Headphone Receivers:
2. Infrared Sensors - Receive signal from the transmitter
3. Battery Cover
4. Volume Control
5. Power Switch
6. Power Indicator Led
7. Auto ON/OFF Micro Switch
Fig. 1
1. Place two (2) alkaline AAA batteries into the battery com-
partment of the Headphones, making sure that the battery
polarity is correct.
Please read carefully to prevent damage to the Headphones
or your ears.
1. Be sure batteries are properly installed in the
2. Turn the Headphone volume nearly off before turning on
the power. Turn on the Headphone power then adjust the
Headphone volume louder to a comfortable level. (You
can adjust the audio source volume louder if needed).
Fig. 2
Auto ON/OFF Switch is
activated when headphones
are placed on head.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct interference by one or more of the following
n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from that to which
the receiver is needed.
n Consult the dealer or an experienced radio/TV technician for help.
Clarion Sales Corporation, 661 West Redondo Beach Blvd.
Gardena, CA 90247-4201 Phone: (310) 327-9100 FAX: (310) 327-1999
Clarion Canada, Inc., 2239 Winston Park Drive, Oakville,
Ontario L6H 5R1, Canada Phone: (905) 829-4600 FAX: (905) 829-4608
