Altec Lansing ACS21W Speaker System User Manual



INTRODUCTION
Welcome to the extraordinary world of Altec Lansing Multimedia high fidelity sound.
The patented Altec Lansing Multimedia Computer Speaker System provides the best computer audio possible. You can plug these computer speaker systems into a
PC audio card and vastly enhance any business presentation, training, education or advertising, music or video production with the same level or audio quality you
are used to hearing from a music CD. These speaker systems can also be used with any multimedia home computer, CD player or video interactive game to provide
a total intelligent audio solution which is practical and affordable.
DESCRIPTION
The ACS22 consists of two amplified speakers especially designed for multimedia computer near field monitoring. The speakers are magnetically shielded so that
they can be placed close to a computer monitor without distorting images. Best stereo affect is obtained when the speakers are placed as far apart as the speaker cord
set allows.
When the ACS22 is not used with a computer, it can serve as an amplified speaker system for CD or Cassette players and various video/audio sources with
excellent results.
USE OF CONTROLS (see figure 1)
Power On/Off
Press the POWER switch to turn the unit on. A green indicator will glow to indicate power is on. Press the POWER
switch again to turn the unit off.
Volume Control
Turn the volume control clockwise to increase volume and counter-clockwise to decrease volume.
Headphone Jack
To listen privately, it is sometimes necessary to use headphones. Once the headphone plug is inserted into the
headphone jack, the speakers are automatically disconnected.
NOTE: The headphones are not included with the unit.
Specifications
Drivers (satellites) Two 3 inch magnetically shielded full range
Frequency Response 110Hz – 18 kHz
Satellite Power 2.5 Watts per Satellite (5 watts total)
Input Impedance 10k ohms
S/N Ratio > 65dB
Power Requirements
USA/Canada Model 117 Volts 60Hz
European/United Kingdom 230 Volts 50Hz
Japanese Model 100 Volts 50/60Hz
Max Power Consumption 15 Watts
UL/CUL/CE Approved
User Guide Altec Lansing
Computer Speaker System
ACS21W/ACS22
CONNECTIONS (see figure 2)
The only connection required is to insert the audio input plug into the computer audio output. After this
connection is made insert the power plug into an AC outlet. The unit is now ready to operate.

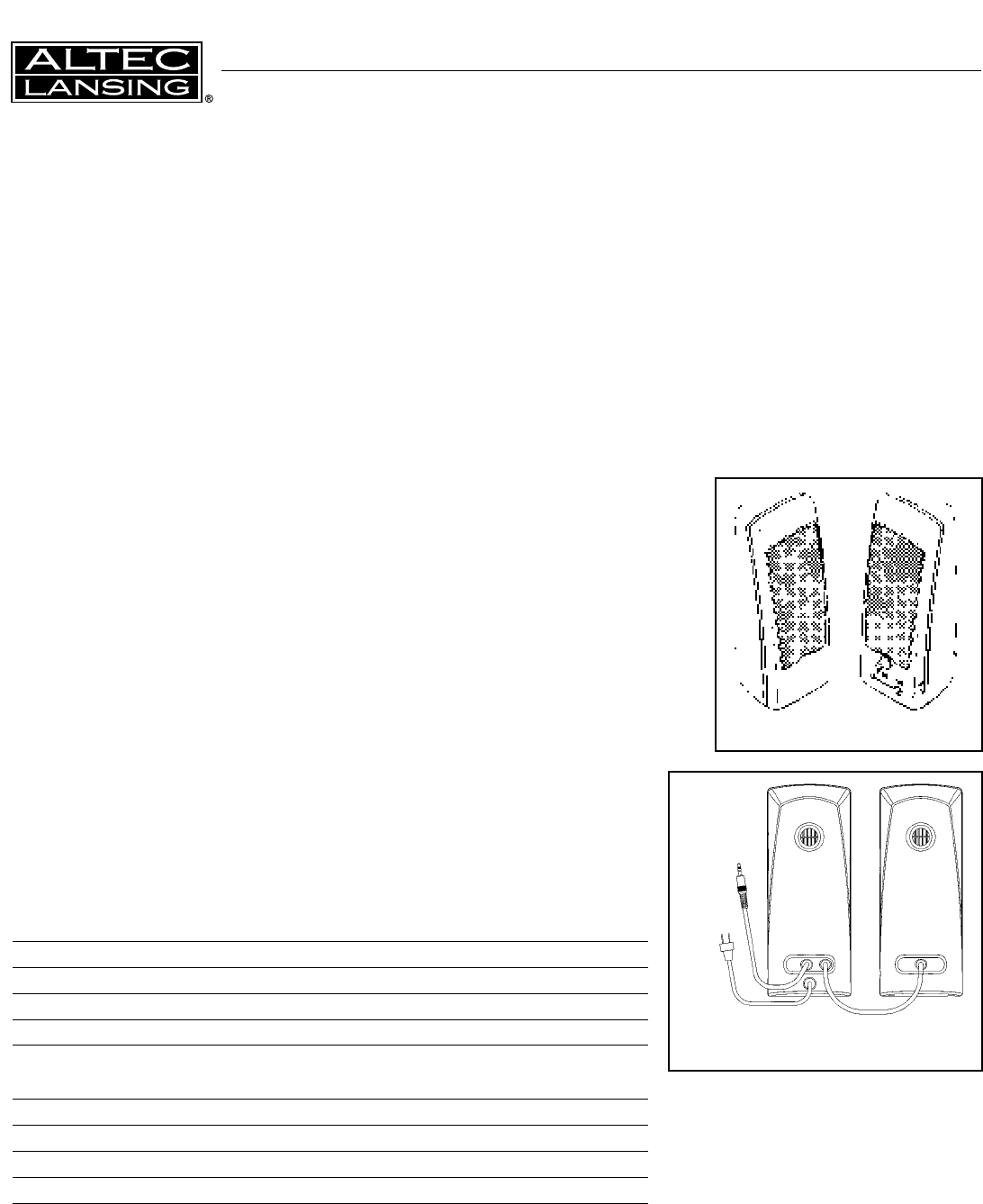

Figure 1
Front View of Satellite Speakers
Figure 2
Rear View of Satellite Speakers
To the computer
audio output
